Setting up SSO with Azure AD (Active Directory)

This guide will help you set up Azure AD SSO for your company.

Access: You should have Manager/Admin DevPath Access to set this up, in addition to having Admin Access within your Azure/O365 instance to take this action. If you do not have this access, please reach out to your IT or Security team to partner in activating this SSO feature.

DevPath provides Single Sign-On (SSO) functionality for customers to access our platform through Azure Active Directory (Azure AD) SSO.

Steps

Making sure SSO is Activated

Step One - Setup in Azure AD

Step Two - Setup in DevPath

---

Making sure SSO is Activated

Before Going Further: At the main dashboard, when you open the Gear ⚙️ menu in DevPath and do not see "SSO Configuration," you will need to reach out to our team to activate that on your account. Please email support@devpath.com so we can activate this for you. Please include your wanting to activate Azure AD SSO in your message.

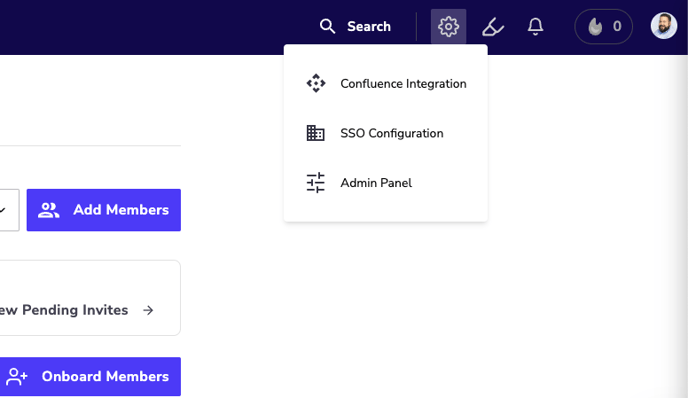

If we have turned this on for you, you should see SSO Configuration in your Gear ⚙️ Menu:

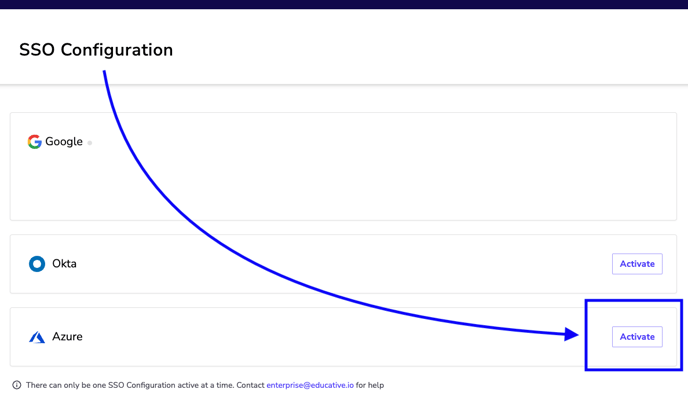

Once there, click into SSO Configuration and you will be taken to a new page:

Click Activate.

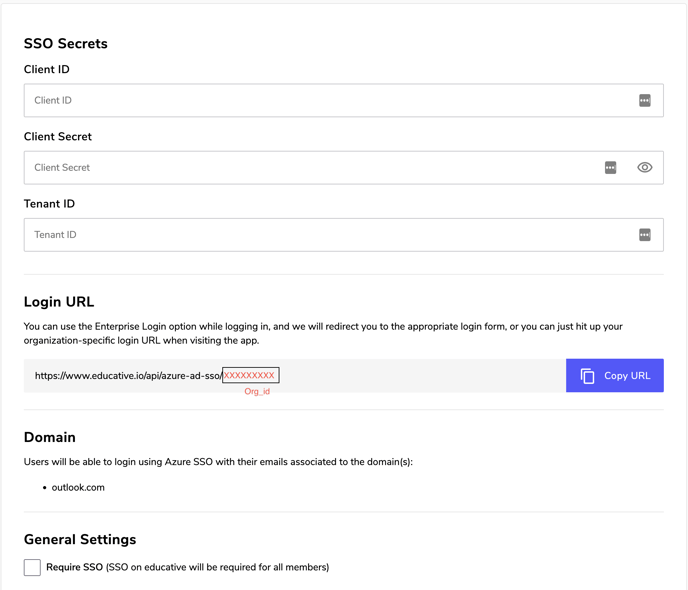

Another page will appear, and you are looking mid-way down for the "Login URL."

You'll see something like this:

https://[your subdomain].DevPath.com/api/azure-ad-sso/XXXXXXXXXXXXX

The XXXXXXXXXXXXX above is your Org_ID. You will need this for the Azure AD App setup, so keep this tab open, and then proceed to Step One below.

---

Part One - Within Azure

Make the Azure AD application through Azure AD Portal

Note: If your Azure application has already been created, skip to Part 2.

i) Login/Sign-up to Azure AD with the administrator credentials: https://portal.azure.com/

ii) Create a new App

a. Register an App

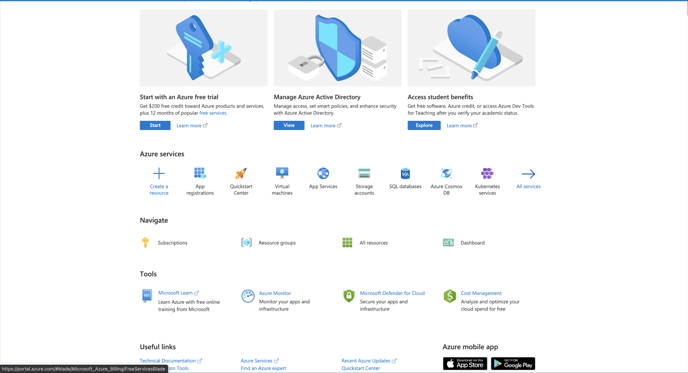

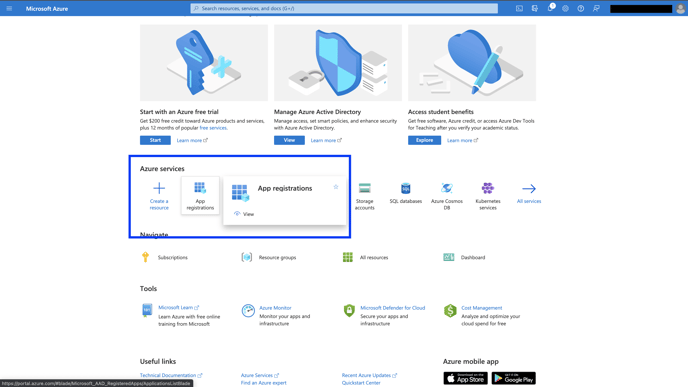

Click on the App Registration button. If it is not already visible on the homepage, you can search for it at the top.

b. Register an application

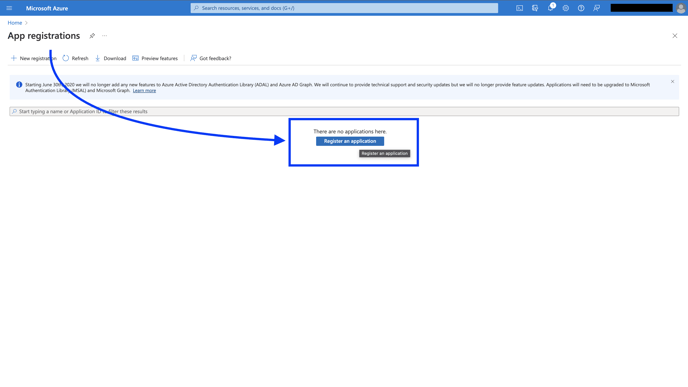

You'll be redirected to a new page in the same tab and will want to click on "Register an application"

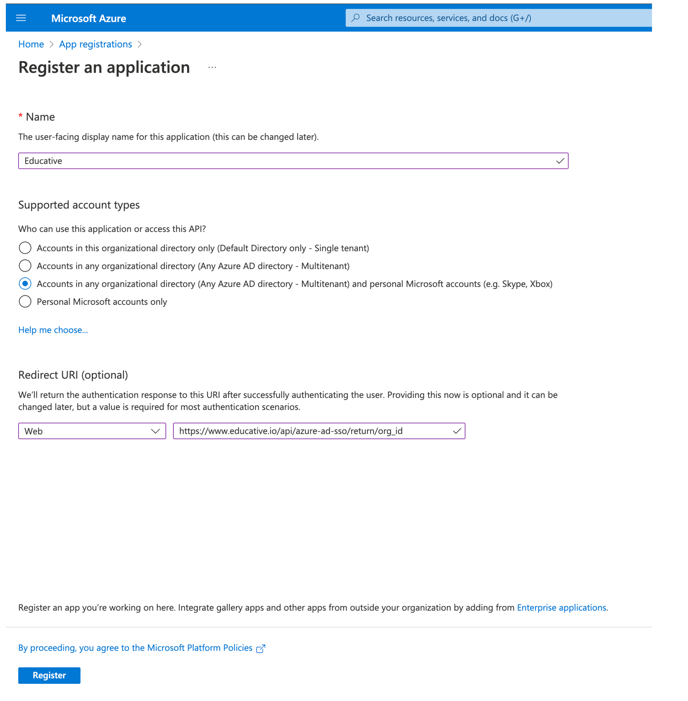

c) Fill in the Form

1. Name - Update the name to "DevPath" or "DevPath-Your Company" or something that easily reminds you of what application/company this is for.
2. Supported Account Types - Unless otherwise directed by your IT team, select "Accounts in any organizational directory (Any Azure AD directory - Multitenant) and personal Microsoft Accounts (e.g. Skype, Xbox)"


3. Redirect URI -
   1. Select "Web" in the first drop-down field.
   2. Copy and Paste this Redirect URI link to the next field:

      https://[your subdomain].DevPath.com/api/azure-ad-sso/return/org_id

   3. If you have closed your tab with DevPath open, click here to head back, open a new tab in your browser and copy the number at the end of your Login URL.

   4. After pasting, be sure the org_id in the redirect URI matches with your company's org_id from DevPath.


      Example:

      If your org_id is 12345678910 then the redirect URI should look like this:

      https://[your subdomain].DevPath.com/api/azure-ad-sso/return/1234567890

4.   Click Register.

After clicking Register, there are a few steps still needed.

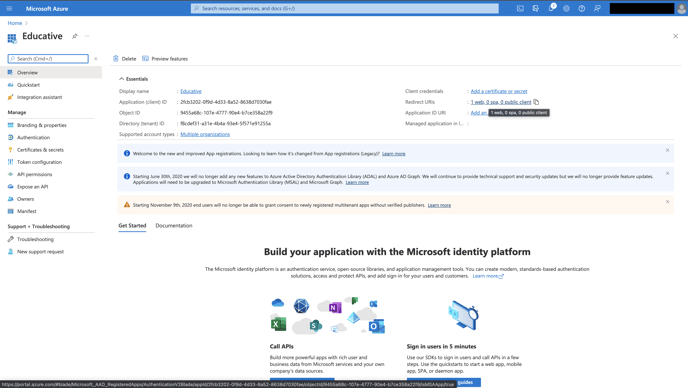

You should see this page (or something similar):

iii) Set additional redirect URI fields

From the screen above, navigate to Redirect URIs.

You can do this 2 ways:

Click on 1 web, 0 spa, 0 public Client link as seen above, or head to the Authentication menu on the left.

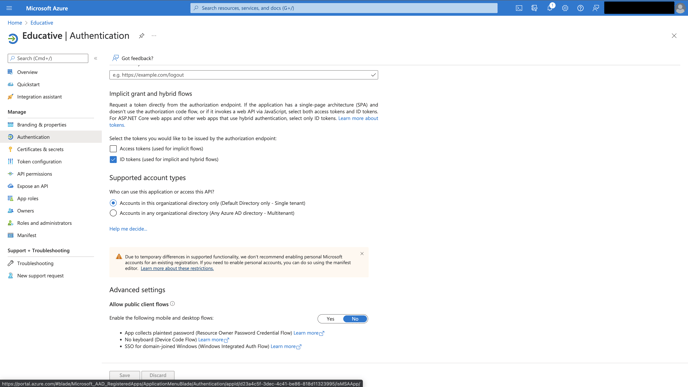

Once there, you'll see Implict grant and hybrid flows

Fill out the form this way:

1. "Select the tokens you would like to be issued by the authorization endpoint "
   1. Choose only ID tokens (used for implicit and hybrid flows)
2. "Supported Account types"
   1. Select Accounts in this organizational directory only (Default Directory only - single tenant)
3. Advanced Settings > Allow public client flows
   1. Enable the following mobile and desktop flows: Select "No"
4. Click Save.

Example:

2. Create new Client Secret

Note: If you already have a client's secret for your app, skip to part 3

From the Authentication menu, now head to the left Manage menu again and click the Certificates & secrets menu.

Once loaded, click on + New client secret.

A menu will slide open from the right, "Add a client secret." Fill this out as follows:

1. Description: DevPath-client-secret
2. Expires: (select from the drop-down) 24 Months
3. Click Add

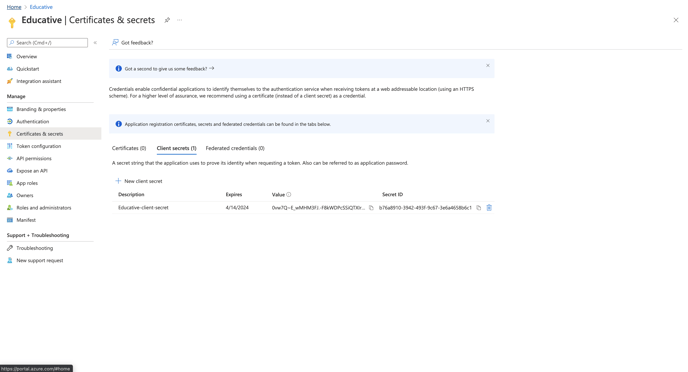

You've created the client secret and it should now look like this:

3. Add API Permissions

From the Certificates & secrets menu, now head to the left Manage menu again and click the API permissions menu.

In the same way you created a client secret, click +Add a permission

Another menu will open from the right, "Request API permissions."

Be sure to have selected the "Microsoft APIs," and then click Microsoft Graph.

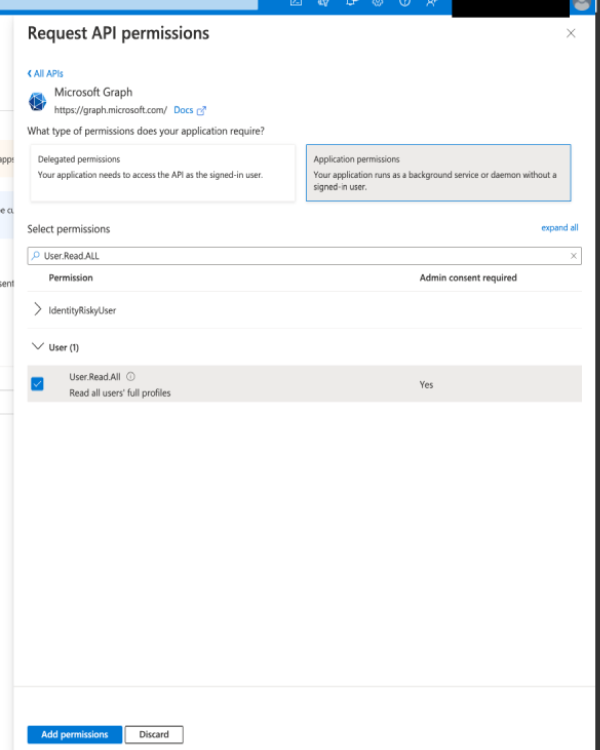

The Microsoft Graph menu will them load, and should look like this:

Click on Application permissions, then click to check the box for the User.Read.All permission, and then click the Add Permissions button. This will close the right menu, and bring you back to the API permissions main area, and you'll notice the addition of User.Read.All.

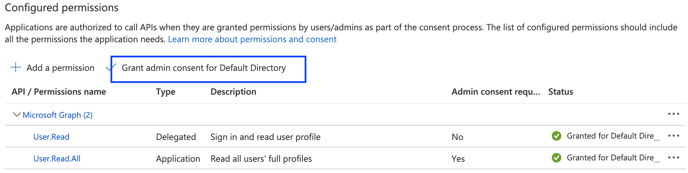

Next, Click the "Grant admin consent for Default Directory" as seen below:

Once this is done, head back to the left menu, click Overview at the top left, and leave this tab open.

---

Part Two - within DevPath

Head to DevPath- if you have left the tab open from earlier, head there now. If you have not, or have been logged out, head here: https://DevPath.com/login

Now we'll head to the Gear ⚙️Menu, and Select SSO Configuration.

Now click Edit/Activate the Azure AD instance- these fields should populate:

Heading back to the Azure Tab you left open earlier, one at a time, copy and paste the different pieces from your Azure portal from the Overview menu:

Before closing this tab, we need to get the client secret we created.

Head to the left menu in Azure and click Certificates & secrets and look for the name we made earlier, DevPath-client-secret.

We want the Value, not the Secret ID- click the copy icon 📑 and then paste this too, into the Client Secret field in DevPath.

Double-Check that you've entered all the requested info from Azure.

Head back to DevPath, and click Save Configuration.

You Did it! 🥳🎉

If you have any questions, please let us know by emailing support@devpath.com
